China Hot 16ton Single Drum Compactor Xs163j Rubber Buffer Road Roller for Sale

Oriemac Machinery & Equipment (Shanghai) Co., Ltd.
  • Type:Road Roller
  • Working Method:Vibration
  • Axle:Uniaxial Monowheel
  • Grinding Wheel Type:Tire Grind
  • Compaction Depth:25cm
  • Engine Type:Diesel Engine

Base Info

  • Model NO.:XS163J
  • Travel Speed:25cm,s
  • Centrifugal Force:27KN
  • Certification:CE
  • Condition:New
  • Engine Model:Sc4h115.4G2b
  • Rated Power:103kw
  • Dimension(Lxwxh):6150X2300X3200mm
  • Total Weight(Standard):16000kg
  • Max. Gradeability:30%
  • Working Hydraulic Pressure:18MPa
  • Transport Package:Nude
  • Specification:6220*2340*3200MM
  • Trademark:ORIEMAC
  • Origin:Xuzhou
  • Production Capacity:100unit,Month

Description

Basic Info.

Model NO. XS163J Travel Speed 25cm/s Centrifugal Force 27KN Certification CE Condition New Engine Model Sc4h115.4G2b Rated Power 103kw Dimension(Lxwxh) 6150X2300X3200mm Total Weight(Standard) 16000kg Max. Gradeability 30% Working Hydraulic Pressure 18MPa Transport Package Nude Specification 6220*2340*3200MM Trademark ORIEMAC Origin Xuzhou Production Capacity 100unit/Month

Product Description

China hot XS163J rubber buffer road roller for sale

Brief Introduction:
XS163J full-hydraulic single-drive vibratory roller is more comfortable to maneuver with superior compaction performance and efficiency. It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.

Specifications:

ItemSpecificationUnit
Engine modelSC4H115.4G2B
Rated power103kW
Dimension(LxWxH)6150×2300×3200mm
Total  weight(Standard)16000kg
Forward speed2.93-12.2km/h
Reverse speed2.93-5.76km/h
Max. gradeability30%
Working hydraulic pressure18MPa
Maximum working weight16000kg
Min. turning radius6800mm
Min. ground clearance440mm
Compaction width2130mm

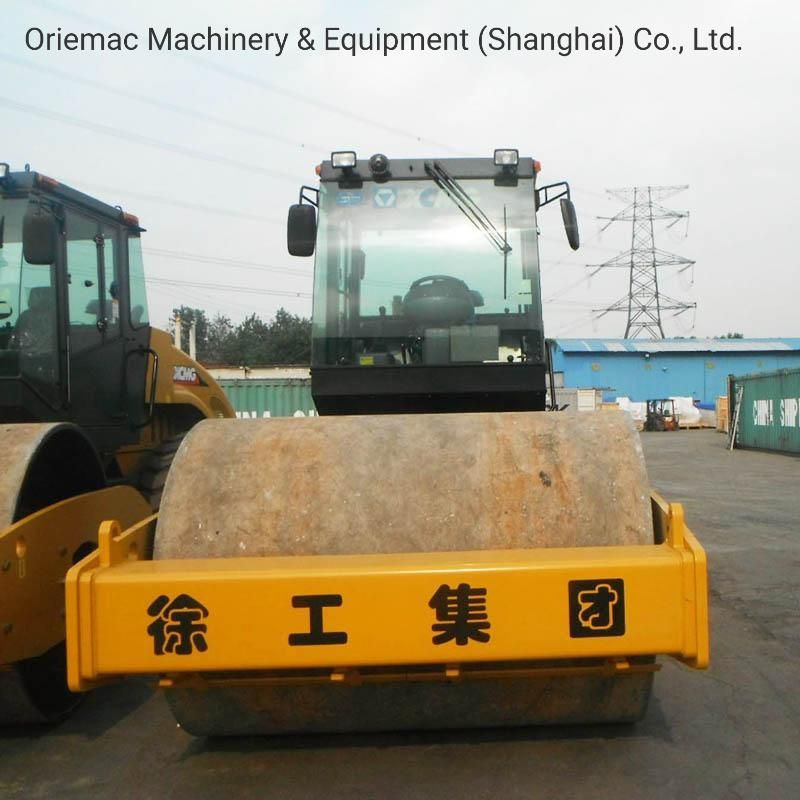

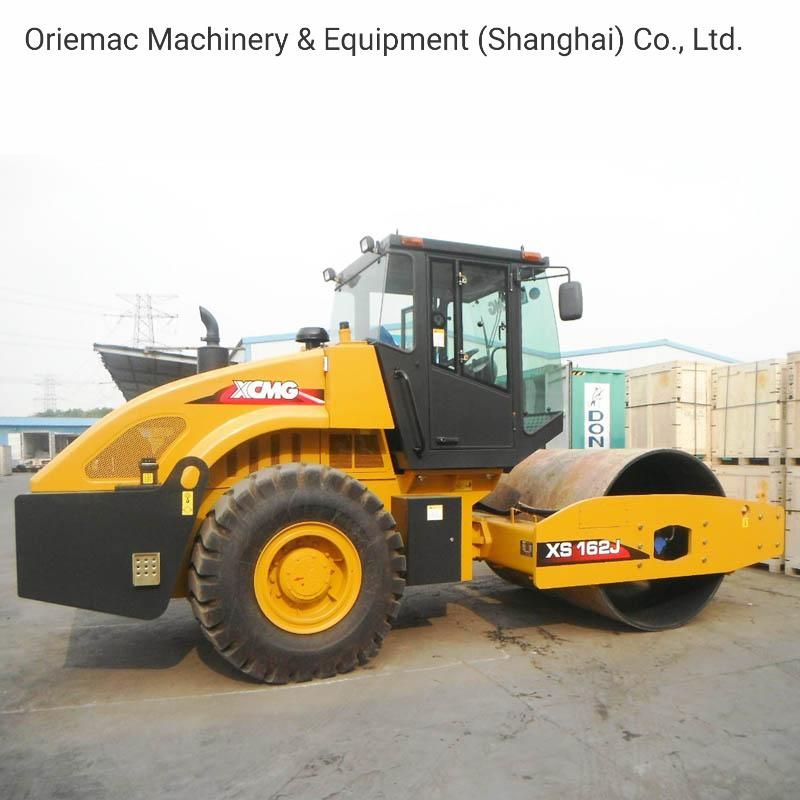

Detailed Pictures:China Hot 16ton Single Drum Compactor Xs163j Rubber Buffer Road Roller for Sale
