Chinese New Mini Truck Mounted Crane with Straight Boom 3200kg Capacity Gsqs68-4
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Max.Lifting Moment：67.2kn.M
- Max.Lifting Capacity：3200kg
- Max Hydraulic Outreach：10.27m
- Slewing Angle：360
Base Info
- Model NO.：GSQS68-4
- Stabilizer Speed：800mm
- Max. Operating Pressure：20MPa
- Recommended Pump Capacity：50L,Min
- Oil Tank Caapcity：60L
- Dead Weight：1265kg
- Brand：Chinese Top Brand
- Transport Package：Nude Packing
- Specification：Standard Configuration
- Trademark：Chinese top brand
- Origin：Hubei, China
- HS Code：84269100
- Production Capacity：5000 Set,Sets , Month
Description
Basic Info.
Model NO. GSQS68-4 Stabilizer Speed 800mm Max. Operating Pressure 20MPa Recommended Pump Capacity 50L/Min Oil Tank Caapcity 60L Dead Weight 1265kg Brand Chinese Top Brand Transport Package Nude Packing Specification Standard Configuration Trademark Chinese top brand Origin Hubei, China HS Code 84269100 Production Capacity 5000 Set/Sets / MonthProduct Description
Chinese new mini truck mounted crane with straight boom 3200KG capacityMain configuration
1. Max.lifting moment:67.2KN.m
2. Max.lifting capacity:3200KG
3. Max hydraulic outreach:10.27m
4. Slewing angle:360
5. Stabilizer speed:800mm
6. Max. operating pressure:20MPa
7. Recommended pump capacity:50L/min
8. Oil tank capacity: 60L
9. Dead weight: 1265KG
10. Brand:Chinese top brand

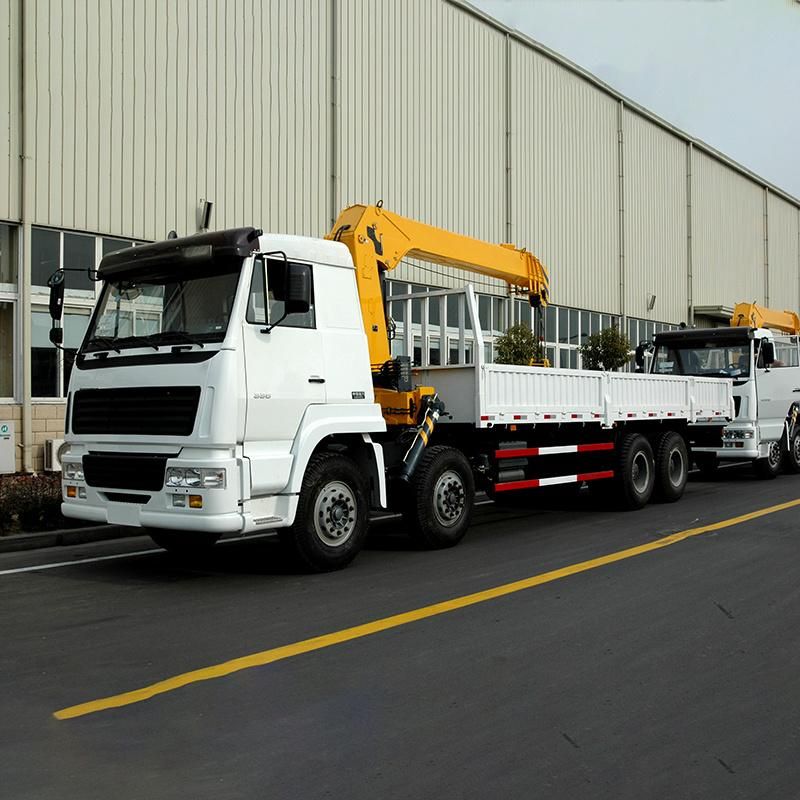

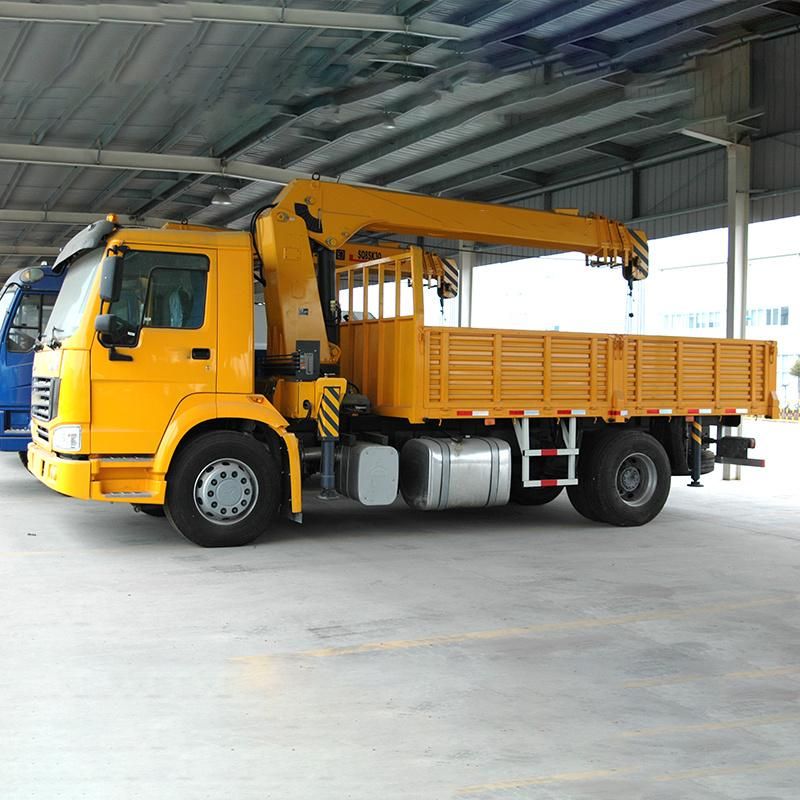

Detail pics:
