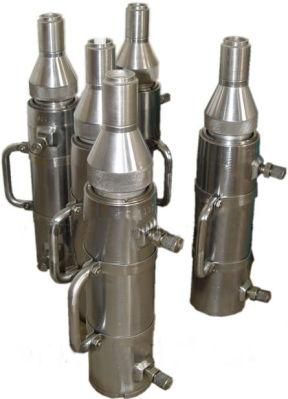

Front-End Fixed Jack (QYC 270)

China Machinery Engineering Henan Co., Ltd.
  • Type：Prestressing
  • Machining Process：Hydraulic
  • Certification：ISO9001: 2000
  • Condition：New
  • Transport Package：Wooden Case
  • Specification：YDC270

Base Info

  • Model NO.：QYC 270
  • Trademark：Beifang
  • Origin：China
  • Production Capacity：50, 000 Sets,Month

Description

  Item   Nominal pressure   Nominal hydraulic   Area of stressing cylinder Return hydraulic  troke of stressing  Diameter of minumum center hole    Overall dimension   Mass Minimum working space    The reserved length of strand
  Unit   KN   Mpa   mm² Mpa  mm  mm  mm  kg  mm  mm
  QYC270   270 62  4400  < 10  200  Φ 17    Φ 114× 529   25   750× 110   220
