• Model NO.：SL50WN
• Type：Medium-sized Loader
• Bucket Capacity：3m3
• Rated Power：92kw
• Load Capacity：3t
• Machine Weight：17100kg
• Transport Package：Nude Package
• Specification：8025*3026*3410
• Trademark：Oriemac
• Origin：China
• HS Code：8429510000
• Production Capacity：100units Per Month

Basic Info.

Model NO. SL50WN Type Medium-sized Loader Bucket Capacity 3m3 Rated Power 92kw Load Capacity 3t Machine Weight 17100kg Transport Package Nude Package Specification 8025*3026*3410 Trademark Oriemac Origin China HS Code 8429510000 Production Capacity 100units Per Month

Product Description

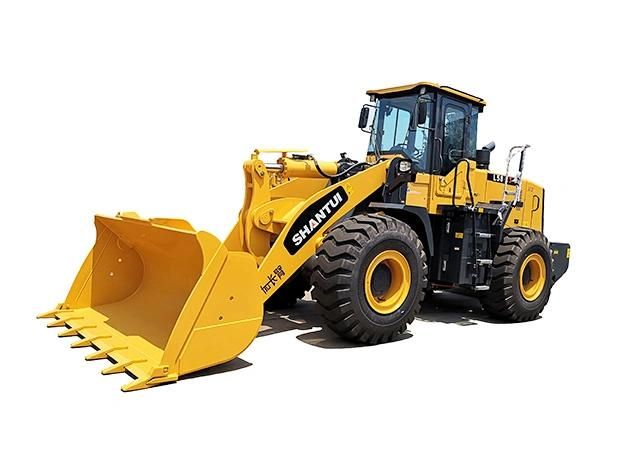

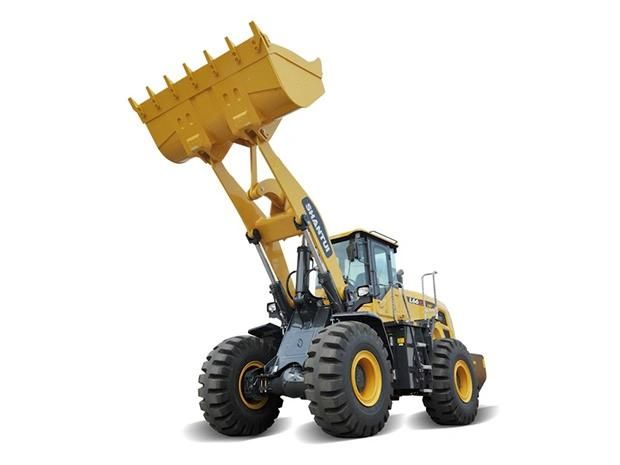

China Shantui 5t SL50wn 5 Ton Front End Loader


Convenient maintenances

The upturning engine hood side door features large opening and convenient services and maintenances.

The externally directed lubrication for both front and rear frames achieves easier maintenances and the grease nozzles are installed with dust caps to realize higher cleanliness.

Reliable Structure

With the adoption of finite element analysis optimization and the utilization of plate structure and automatic robot welding, the structural parts of the main machine feature high resistance against load and distortion, high firmness and compactness, and good stability.

High operating efficiency

The optimized 3,057mm dumping height, guarantees the excellent loading performance and ensures the carrying of higher torsional torque, featuring extensive loading/unloading scope and high efficiency. The automatic leveling function of the bucket and the 9.0s total cycle time, reduce the driver's labor strength.

Transmission system

It's equipped with Shantui's single-stage single-phase three-element torque converter and fixed shaft power shift transmission for power transmission,

Good power matching, stable motion, and more powerful operations.

The split structures ease the repairs and maintenances.

The speed choice of four forward gears and two reverse gears is suitable for diversified severe industrial and mining conditions and realizes faster movement.

Power System

The engine adopts environmental-friendly Weichai Deutz WP6G125E201 engine, featuring strong power, reliable performance, and high efficiency and energy-saving.

Parameter name	SL50WN
Performance parameters
Operating weight (Kg)	17100
Maximum dumping height (mm)	3330 (Extended boom)3700 (Long Boom)
Dumping reach (mm)	1230 (Extended boom)1270 (Long Boom)
Maximum breakout force (kN)	≥185
Total cycle time (s)	10.6
Engine
Engine model	WD10
Rated power/rated speed (kW/rpm)	162/2000
Overall dimensions
Overall dimensions of machine (mm)	8025*3026*3410
Driving performance
Forward speed (km/h)	F1:0-13,F2:0-38
Reversing speed (km/h)	R1:0-17
Chassis System
Wheelbase (mm)	3250
Tank capacity
Fuel tank (L)	220
Working device
Rated bucket capacity (m³)	3
Rated loading capacity (t)	5
