• Model NO.：HT15
• Drive Type：Electric Drive
• Bucket Capacity：0.1~0.5m³
• Size：Small-Scale
• Certification：CE, ISO9001: 2000
• Condition：New
• Transport Package：Wooden Box
• Specification：1000 kg
• Trademark：Hightop
• Origin：Shandong Province, China
• HS Code：8429521200
• Production Capacity：10000,Year

Basic Info.

Model NO. HT15 Drive Type Electric Drive Bucket Capacity 0.1~0.5m³ Size Small-Scale Certification CE, ISO9001: 2000 Condition New Transport Package Wooden Box Specification 1000 kg Trademark Hightop Origin Shandong Province, China HS Code 8429521200 Production Capacity 10000/Year

Product Description

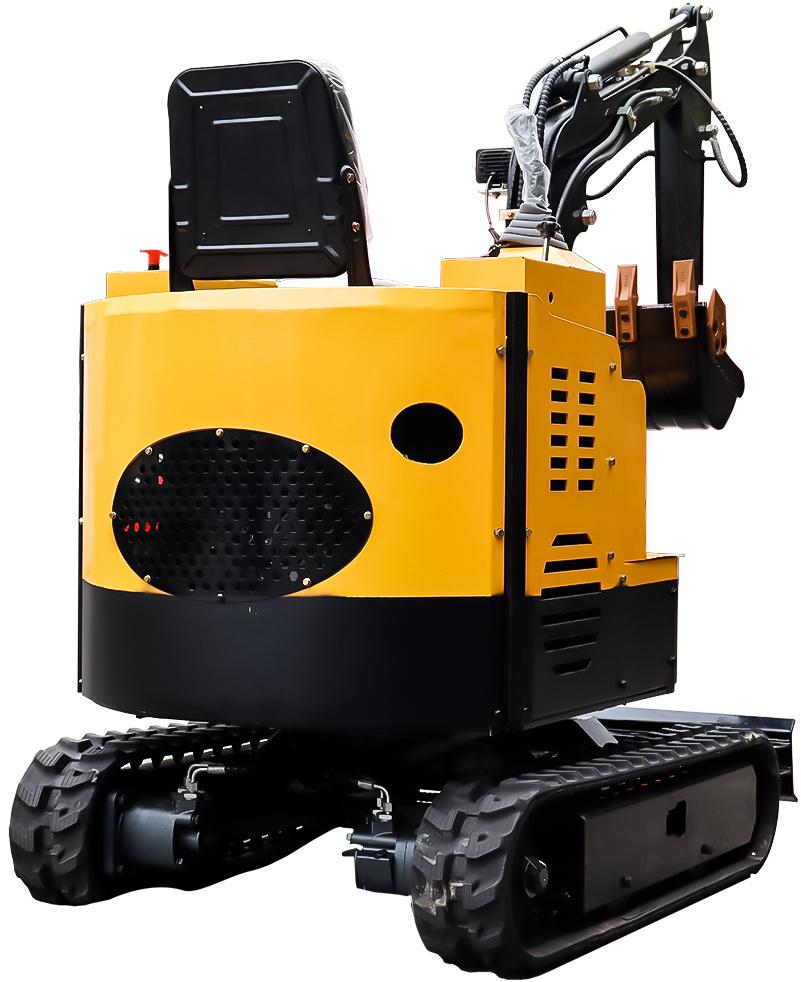

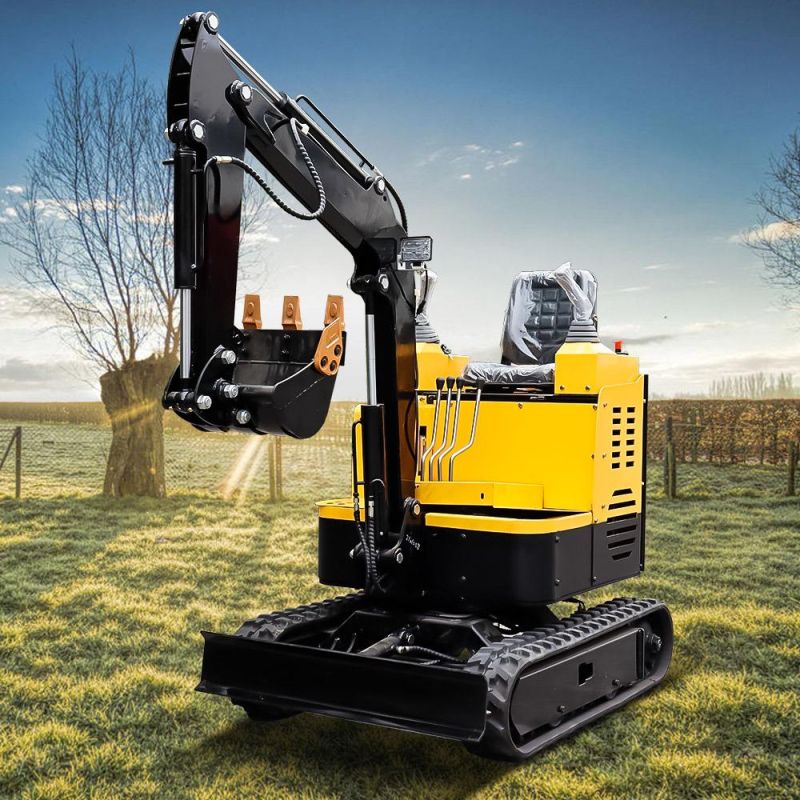

HT15 Mini Excavator

Main Parameter


Engine	Unit	Specificatin
Vehicle weight	kg	1500
Standard bucket capacity	m³	0.025

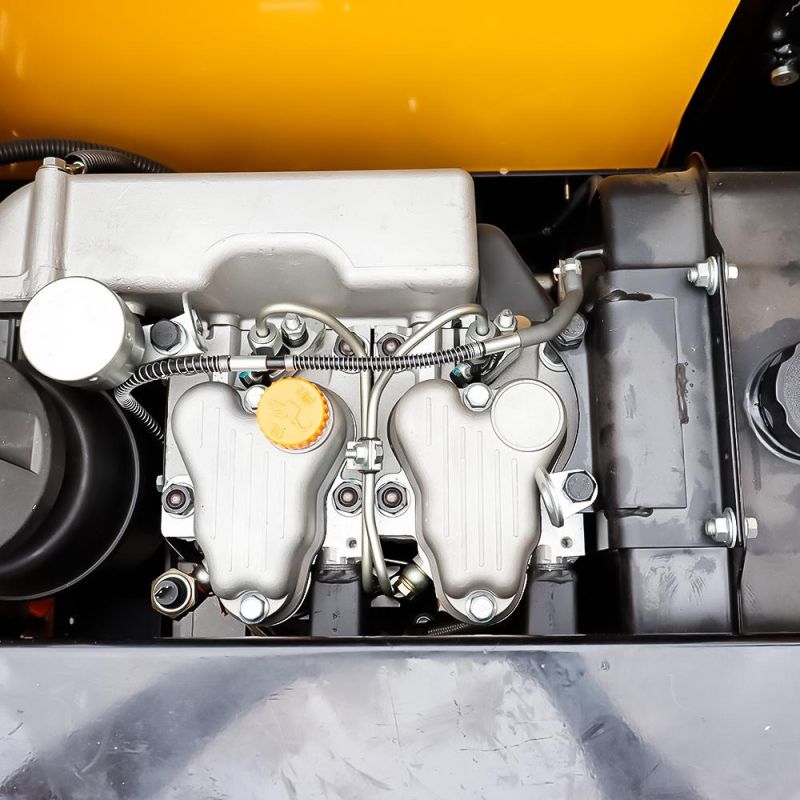

engine model		KOOP DIESEL ENGINE
Rated power/speed	kw/rmp	14(20HP)
System pressure	Mpa	16
Swing speed	rmp	11
Maximum climbing angle	°	35
Walking speed (high speed/low speed)	Km/h	1.5
Hydraulic oil tank volume	L	22
Fuel tank volume	L	18
Dimendions	Unit	Specificatin

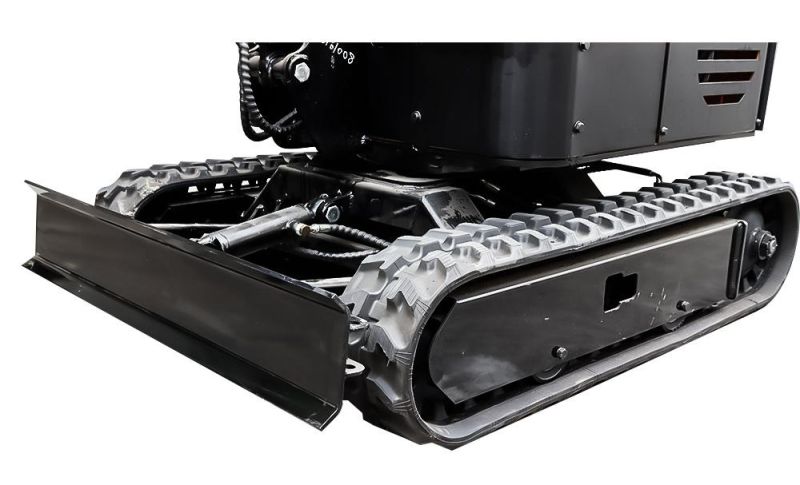

Wheelbase	mm	800
Total track length	mm	1220
Platform ground clearance	mm	375
Chassis width	mm	980
Track width	mm	180
Track material		rubber
Full vehicle height	mm	1950
Operating range	Unit	Specificatin
Maximum ground excavation radius	mm	2900
Maximum digging depth	mm	1650
Maximum digging height	mm	2350
Maximum unloading height	mm	1650
Maximum vertical excavator depth	mm	1650
Minimum radius of gyration	mm	1550
The maximum lifting height of the bulldozer	mm	150
The maximum digging depth of the bulldozer	mm	180

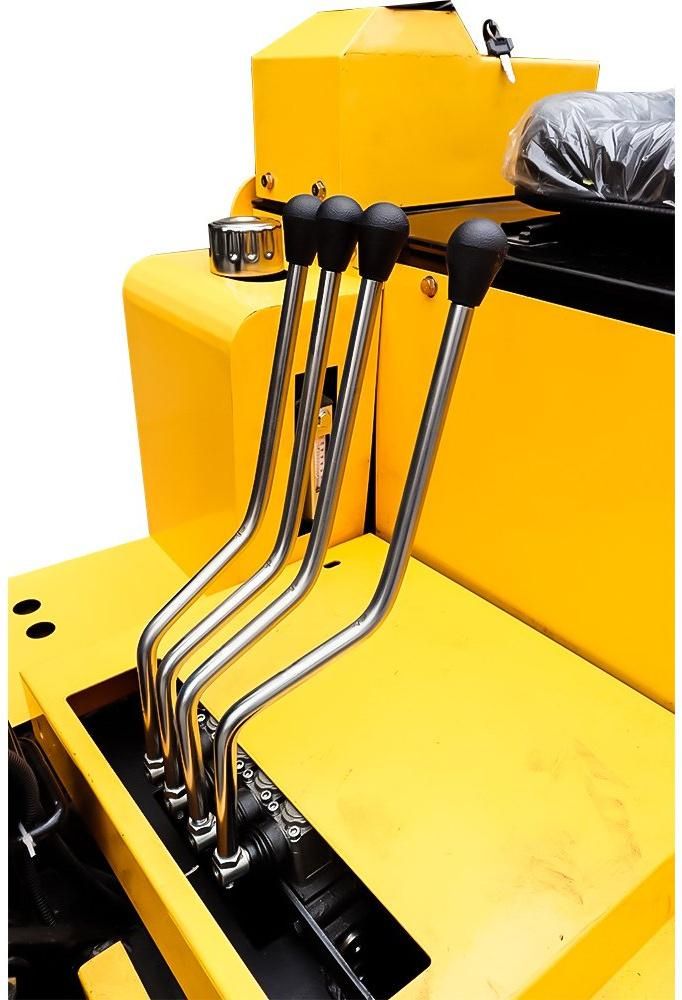

  Details




Packing
