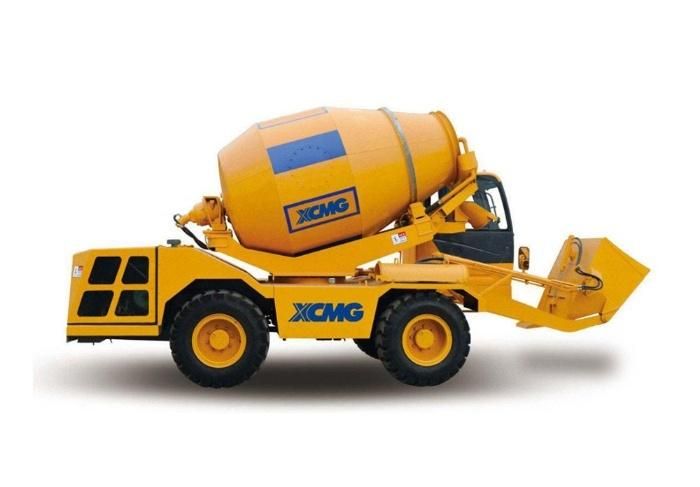

3.5 Cbm Concrete Self Loading Mixer Truck (SLM4K)
Evangel Industrial (Shanghai) Co., Ltd.- After-sales Service：Provided
- Warranty：Provided
- Type：Concrete Mixing Truck
- Shotcrete Type：Semi-Dry
- Machining Process：Hydraulic
- Structure：Spiral Type
Base Info
- Model NO.：SLM4K
- Productivity：180m²,h
- Feeding Height：1390mm
- Vibrating Amplitude：2.2mm
- Certification：ISO9001: 2000
- Condition：New
- Color：Yellow
- Transport Package：Nude
- Specification：ISO
- Trademark：DFAC
- Origin：China
- Production Capacity：1, 000units,Month
Description
Model
SLM4K
Engine
YC4A115Z-T20 / 85kW
Max. output
4m³
Transmission system
4*4
Vehicle speed
0~30km/h
Cab
Joystick
Electrical system
(28V-55A)(24V-180Ah)
Max. gradeability
45%
Bucket
560L
Steering system
Hydraulic, rear axle
Water system
500L/min
Water/fuel/hydraulic oil tank
900/100/110L
Wheel base
2400/1975mm
Inner/outer turning radius
3560/6030mm
Outline dimension (travelling state)
5650×2470×3850mm
Curb weight
≈7500kg
Other
4CBM self-loading concrete mixer SLM4K
