• Model NO.：SYG5286THB 380C-10
• Condition：New
• Color：Yellow
• Empty Weight：28300kg
• Vertical Reach：38m
• Horizontal Reach：34m
• Reach Depth：21.5m
• Pressure：8.3 , 12MPa
• Axle：Three
• Transport Package：Nude Packing
• Specification：11440x2500x3920mm
• Trademark：EVANGEL
• Origin：China
• Production Capacity：50units,Month

Basic Info.

Model NO. SYG5286THB 380C-10 Condition New Color Yellow Empty Weight 28300kg Vertical Reach 38m Horizontal Reach 34m Reach Depth 21.5m Pressure 8.3 / 12MPa Axle Three Transport Package Nude Packing Specification 11440x2500x3920mm Trademark EVANGEL Origin China Production Capacity 50units/Month

Product Description

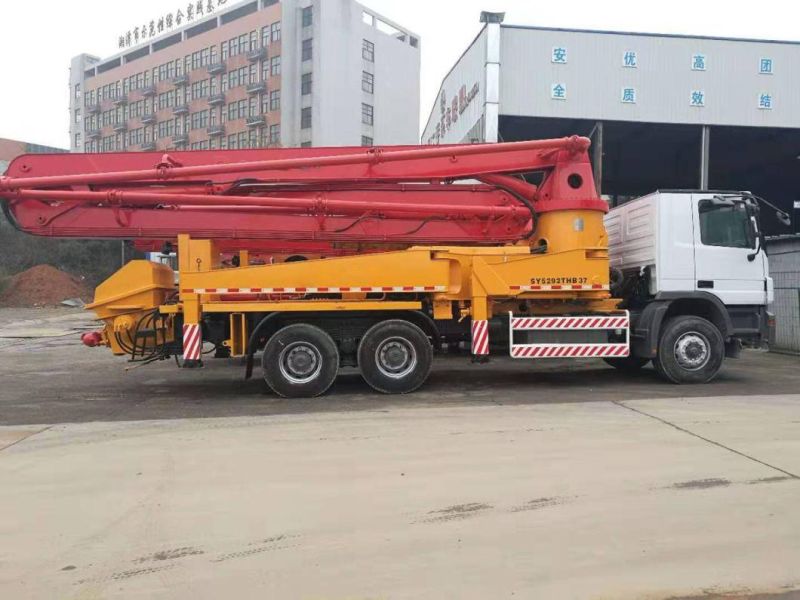

New 38m truck mounted concrete pump with three-axle chassis cheap price

Energy-saving Technology
When system pressure reaches 12Mpa:No. of stroke reaches 29t/Min. Pump efficiency increases 25%(Max). Diesel consumption decreases 10%.
Anti Overswing Technology
To use top rotation brake technology to control the amplitude of Boom on swing, the boom's overswing amplitude is reduced by 60%.
Longer Life Time Wearing Parts
Delivery pipe
Discharge port/transition bushing
Concrete piston
Wear plate/cutting ring
Delivery cylinder
Self-diagnosis Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Safety Protection Technology
Overload protection for boom cylinders
Agitator safety switch off
Boom interference preventing technology

SYG5286THB 380C-10
Length: 11440mm
Width: 2500mm
Height: 3920mm
Empty Weight: 28300kg
Vertical Reach: 38m
Horizontal Reach: 34m
Reach Depth: 21.5m
Output: 170 / 120m³/h
Pressure: 8.3 / 12MPa
Chassis Brand: BE-NZ
Chassis Model: Actros 3343

SYG5288THBCS 380C-10
Length: 11800mm
Width: 2500mm
Height: 3920mm
Empty Weight: 28300kg
Vertical Reach: 38m
Horizontal Reach: 34m
Reach Depth: 21.5m
Output: 200 / 137m³/h
Pressure: 8.3 / 12MPa
Chassis Model: SYM5350THB1C
