• Model NO.：XS103H
• Compaction Depth：35cm
• Engine Type：Diesel Engine
• Travel Speed：35cm,s
• Centrifugal Force：30.5KN
• Certification：CE, ISO 9001:2000
• Condition：New
• Operating Weight：10000kg
• Engine Model：Shanghai Diesel Engine
• Road Roller Color：Yellow
• Transport Package：Suitable Package for Shipment
• Specification：ISO
• Trademark：EVANGEL
• Origin：Jiangsu, China
• HS Code：84294019
• Production Capacity：100PCS,Month

Basic Info.

Model NO. XS103H Compaction Depth 35cm Engine Type Diesel Engine Travel Speed 35cm/s Centrifugal Force 30.5KN Certification CE, ISO 9001:2000 Condition New Operating Weight 10000kg Engine Model Shanghai Diesel Engine Road Roller Color Yellow Transport Package Suitable Package for Shipment Specification ISO Trademark EVANGEL Origin Jiangsu, China HS Code 84294019 Production Capacity 100PCS/Month

Product Description

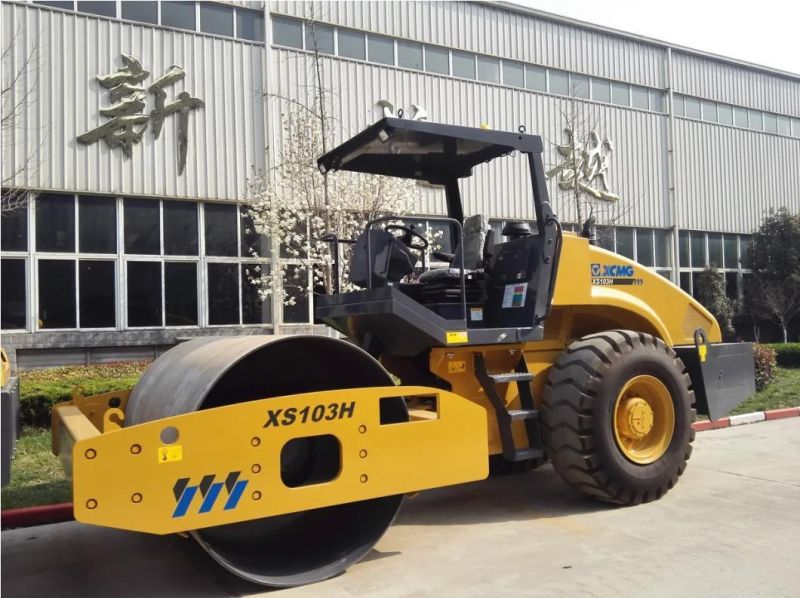

10 ton new small mini single drum Vibratory road roller (XS103H)

The XS103H fully hydraulic single-drive vibratory roller is more comfortable to operate and offers superior compaction performance and efficiency. It is suitable for compaction operations such as concrete, stabilized soil, pebbles, sandy soil, and sticky soil. It is an ideal compaction device for the construction of high-grade highways, airports, ports, and embankments.



Description	Unit	Parameter value
Drive wheel distribution weight	kg	5900
Vibratory drum distribution weight	kg	4700
Static line load	N/cm	216
Vibration frequency	Hz	30/35
Theoretical amplitude	mm	1.9/0.95
Exciting force	kN	220/150
Speed range	Km/h	0-7.3
Wheelbase	mm	3040
Compaction width	mm	2130
Theoretical climbing ability	%	40
Minimum turning radius	mm	6400
Vibratory drum diameter	mm	1513
Minimum ground clearance	mm	431
Engine model		SC4H135G2
Engine Rated speed	r/min	2200
