Sg21-3 210HP Shantui New Road Machine Road Graders with Ripper for Sale
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：One-Year Warranty
- Certification：ISO, CE
- Condition：New
- Application：Railway, Mine, Farmland, Highway
- Transmission：Power
Base Info
- Model NO.：SG21-3
- Walking Mode：Wheeled
- Type：Large Grader
- Transport Package：in Nude
- Specification：8015*2380*3050mm
- Trademark：SHANTUI
- Origin：Shantui, China
- HS Code：84292090
- Production Capacity：5000PCS,Year
Description
Basic Info.
Model NO. SG21-3 Walking Mode Wheeled Type Large Grader Transport Package in Nude Specification 8015*2380*3050mm Trademark SHANTUI Origin Shantui, China HS Code 84292090 Production Capacity 5000PCS/YearProduct Description
SG21-3 210HP SHANTUI NEW Road machine road graders with ripper for saleProduct Description
Power System
* It's powered by Dongfeng Cummins 6BTAA5.9-C180 China-II compliant inline, 4-stroke, direct injection, water-cooled, and turbocharged and intercooled diesel engine, featuring compact structure, stable performances, and high efficiency and energy-saving.
* The high torque reserve enables the machine to output stable power under severe working conditions and meet your working needs.
Technical Parameters
| Product name | SG21-3 |
| Performance parameters | |
| Operating weight of machine (kg) | 16800 |
| Wheelbase (mm) | 6560 |
| Wheel tread (mm) | 2155 |
| Minimum ground clearance (mm) | 430 |
| Steering angle of front wheels (°) | ±45 |
| Articulated steering angle (°) | ±25 |
| Maximum traction force (kN) | 88.2(f=0.75) |
| Turning radius (mm) | 8200 (Outer side of front wheel) |
| Maximum gradeability (°) | 20 |
| Width of shovel blade (mm) | 3660/3965/4270 |
| Height of shovel blade (mm) | 635 |
| Blade slewing angle (º) | 360 |
| Blade cutting angle (º) | 37-83 |
| Maximum digging depth of blade (mm) | 500 |
| Length (mm) | 9315 |
| Width (mm) | 2600 |
| Heigh (mm) | 3400 |
| Engine | |
| Engine model | 6CTAA8.3-C215 |
| Emission | China-II |
| Type | Mechanical direct injection |
| Rated power/rated speed (kw/rpm) | 160kW/2200rpm |
| Drive system | |
| Torque converter | Single-stage single-phase three-element |
| Transmission | Countershaft power shift |
| Gears | Six forward and three reverse |
| Speed for forward gear I (km/h) | 5.4 |
| Speed for forward gear II (km/h) | 9.4 |
| Speed for forward gear III (km/h) | 12.2 |
| Speed for forward gear IV (km/h) | 20.5 |
| Speed for forward gear V (km/h) | 25.4 |
| Speed for forward gear VI (km/h) | 39.7 |
| Speed for reverse gear I (km/h) | 5.4 |
| Speed for reverse gear II (km/h) | 12.2 |
| Speed for reverse gear III (km/h) | 25.4 |
| Brake system | |
| Service brake type | Hydraulic brake |
| Parking brake type | Mechanical brake |
| Brake oil pressure (MPa) | 10 |
| Hydraulic system | |
| Working pump | Constant displacement gear pump, with flow at 28ml/r |
| Operating valve | Integral multi-way valve |
| Pressure setting of safety valve (MPa) | 16 |
| Pressure setting of safety valve (MPa) | 12.5 |
| Filling of fuel/oils/fluids | |
| Fuel tank (L) | 340 |
| Working hydraulic fuel tank (L) | 110 |
| Transmission (L) | 28 |
| Drive axle (L) | 25 |
| Balance box (L) | 2X23 |

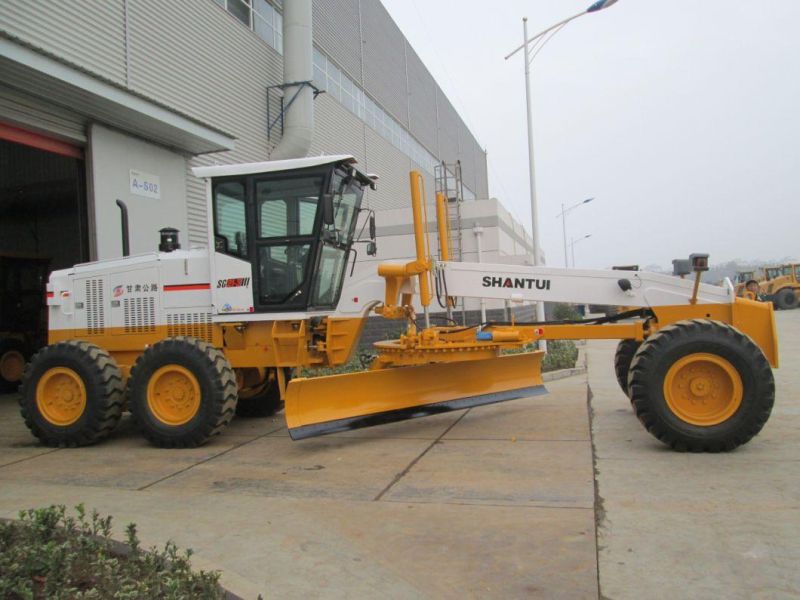

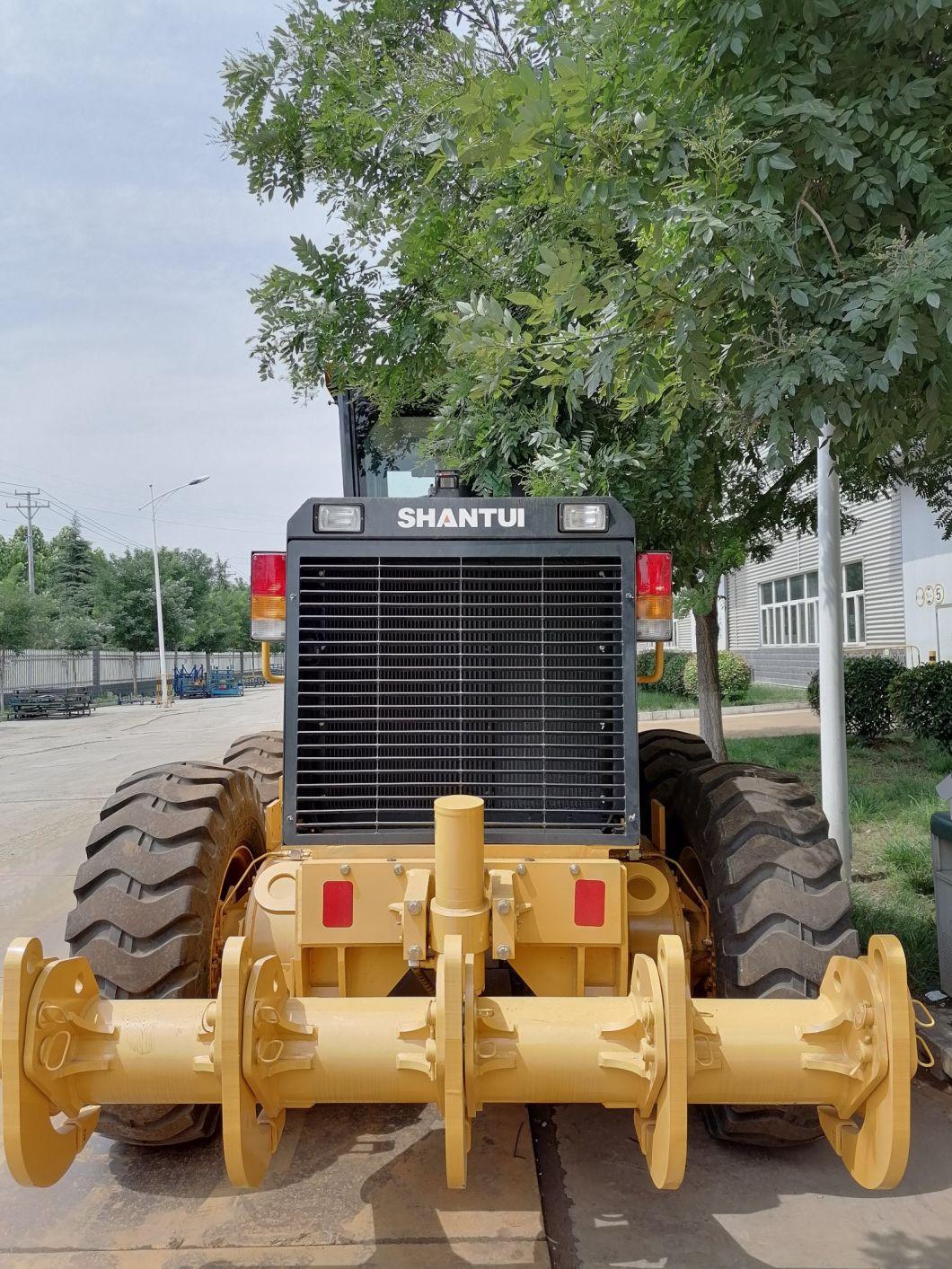

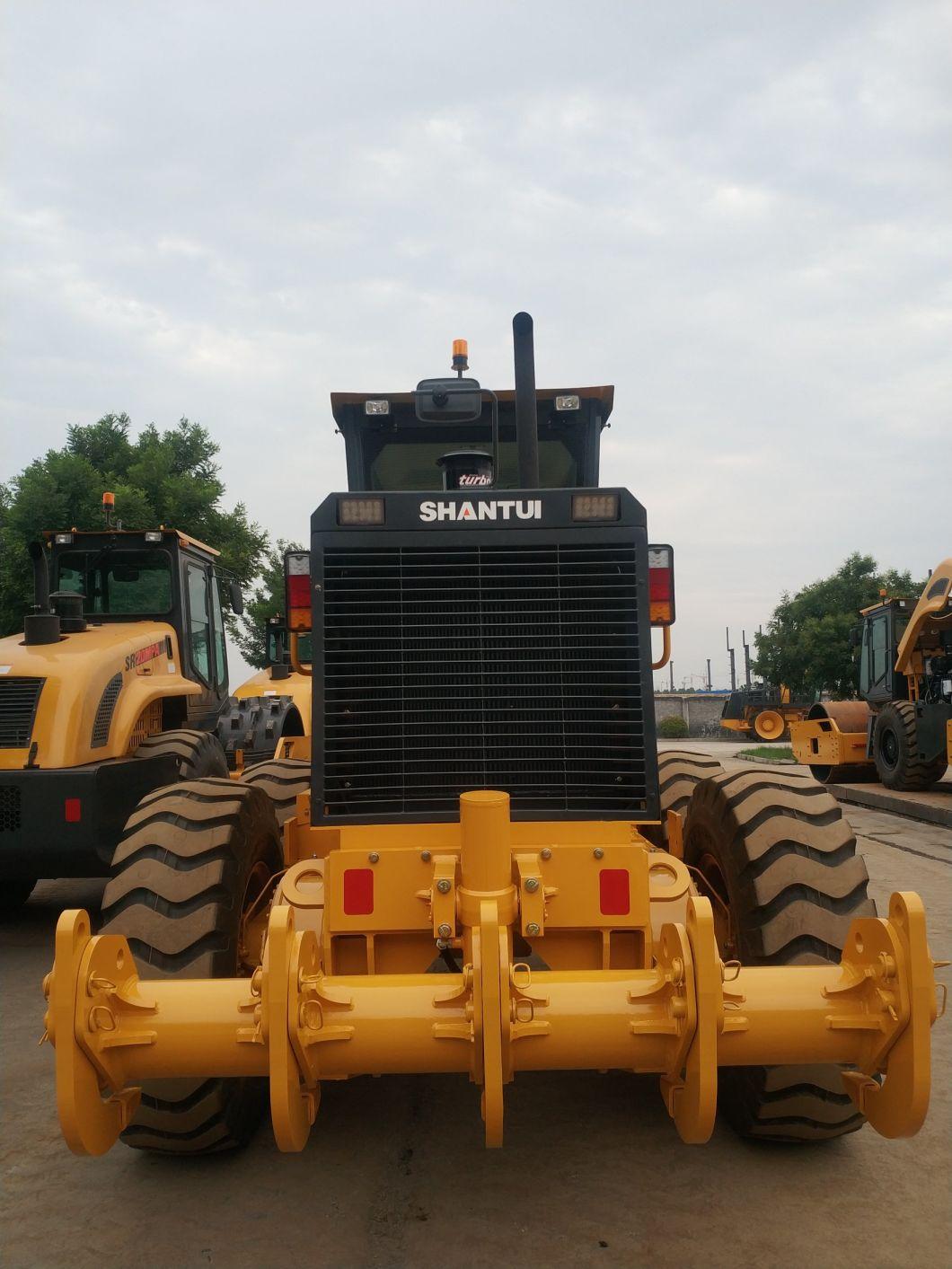

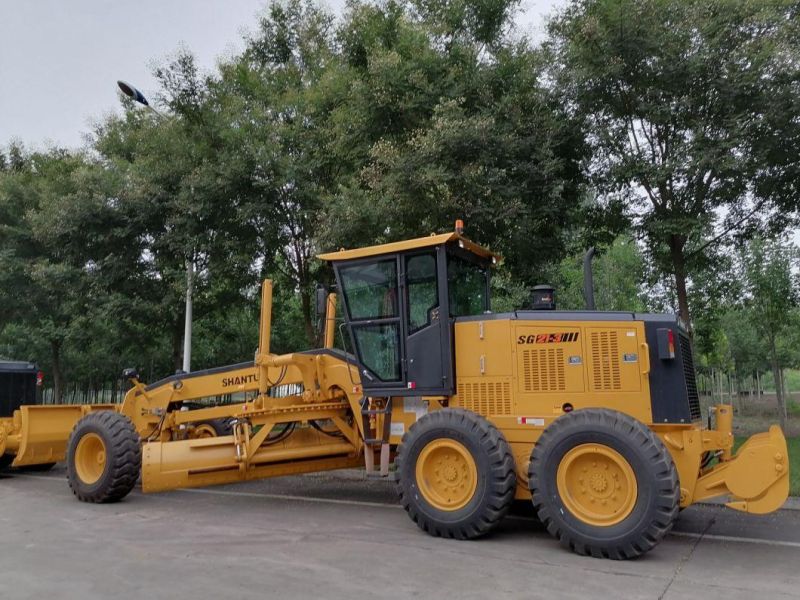

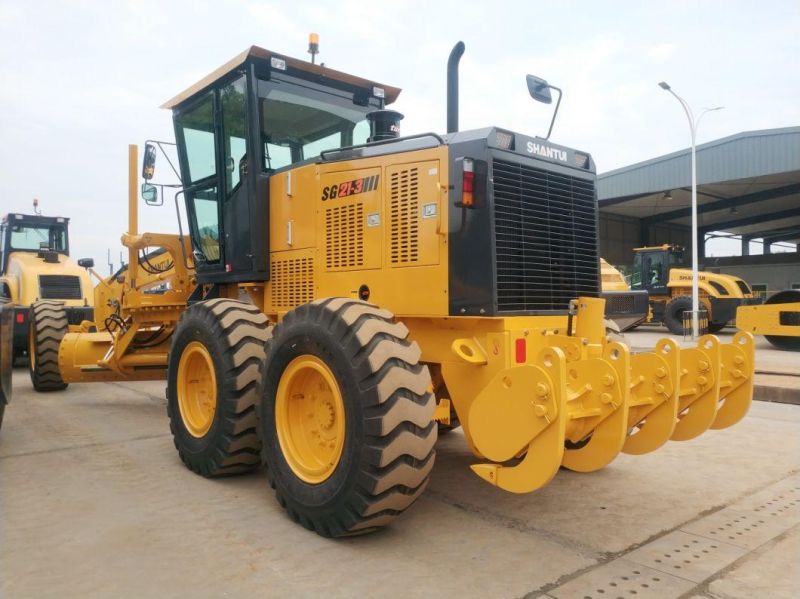

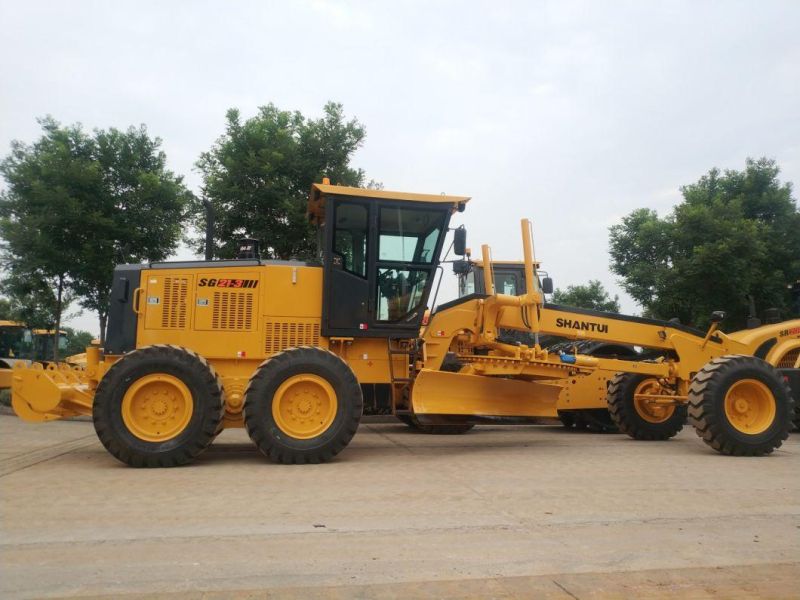

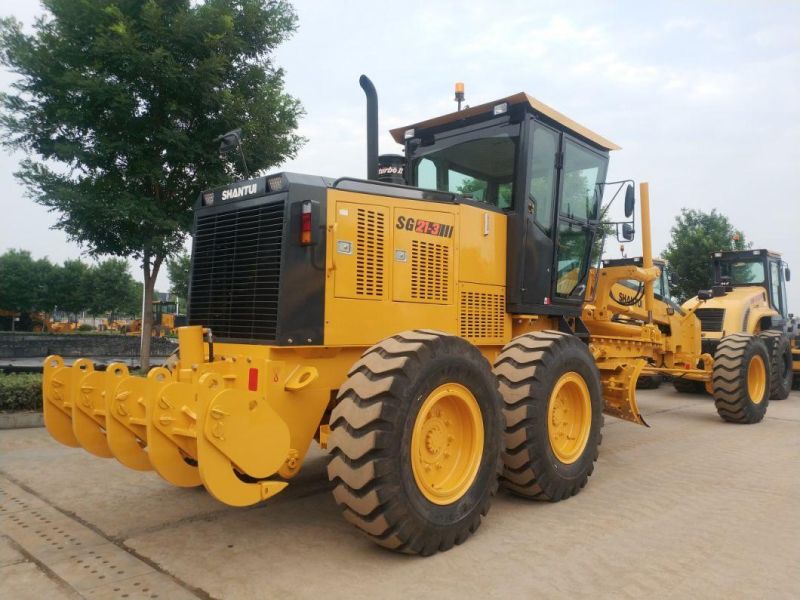

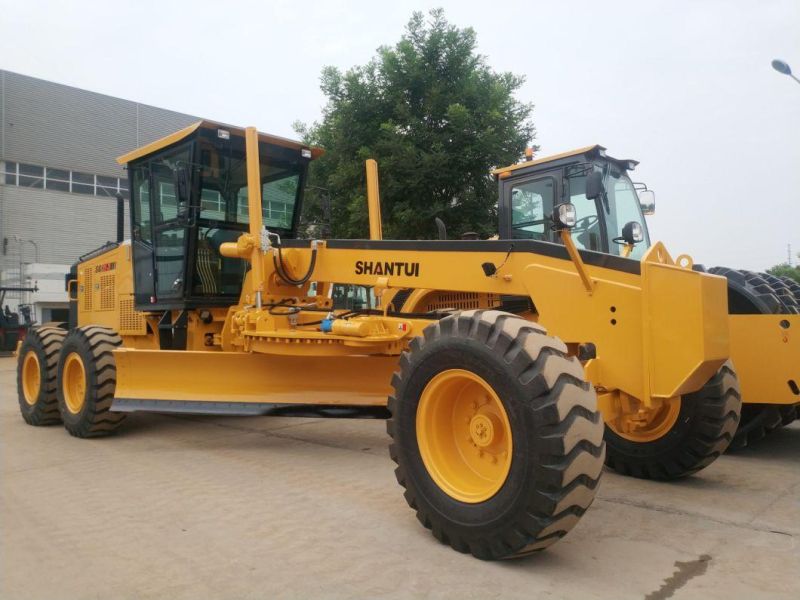

Product Pictures
