• Model NO.：ZL50GN,LW300KN,LW300FN,QY50KA
• Vibrating Amplitude：2.6mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：White
• Transport Package：Nude
• Specification：2009kN. m
• Trademark：ZOOMLION
• Origin：China
• HS Code：8413400000
• Production Capacity：1000000pieces,Year

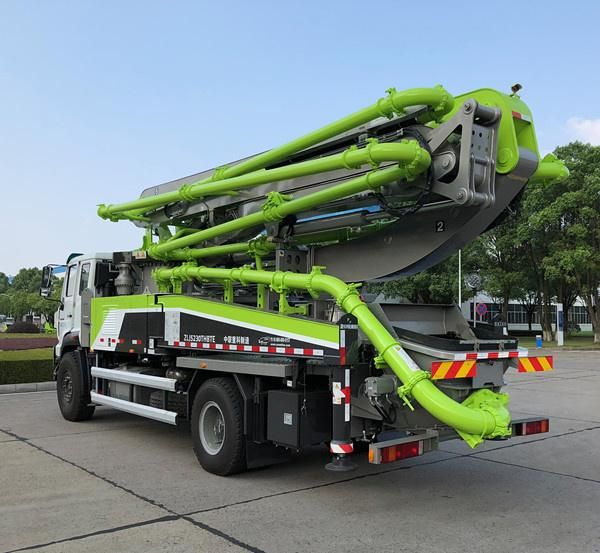

Model

ZLJ5230THBTE 37X-5RZ

Pumping system

Maximum theoretical delivery (m3/h)

100/60

Concrete maximum outlet pressure (MPa)

8/15

Fixed work stress (MPa)

35

Hopper volume (L)

550

Feeding height (mm)

1540

Distribution valve form

S valve

Boom

structure type

37X-5RZ

Maximum fabric height (m)

36.5

Maximum cloth radius (m)

32.15

Swing angle

±270°

Number of arms

                                5

Arm length (mm)

7280/5920/5670/6880/6750

Arm angle

90°/180°/180°/240°/195°

Duct diameter (mm)

125

Leg span (front × back × portrait) (mm)

6190mm×7740mm×6780mm

Chassis and vehicle

Chassis model

Sinotruk Brand ZZ5231N521GE1

Wheelbase (mm)

5200

engine model

Man Engine: MC07.31-50

Engine maximum power (kW/(r/min))

228/2300

Engine maximum torque N.m/(r/min)

1230 /(1200~1800)

engine capacity cc

6870

Fuel tank volume L

300

Exhaust emission standard

Euro V

Vehicle quality (kg)

23000

Overall dimensions (length × width × height) mm

9840×2530×3905
