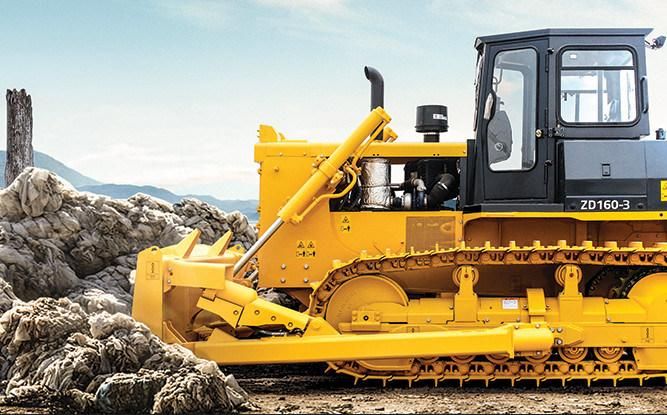

Zoomlion Brand 160HP Bulldozer Zd160-3

Acntruck Automobile Sales (Shanghai) Co., Ltd.
  • Type：Universal Type
  • Transmission：Hydraulic Transmission
  • Walking Mode：Crawler
  • Load and Unload Method：Front Discharge
  • Engine Power：147~515kw
  • Certification：ISO9001: 2000

Base Info

  • Model NO.：ZD160-3
  • Condition：New
  • Color：Yellow
  • Working Mass：16500kg
  • Blade Capacity：4.6m3
  • Engine Model：Wd10g178e25
  • Rated Power/Slewing Speed：131kw,Rpm
  • Max. Torque：830,1100
  • Max. Lift Height of Dozer：1095mm
  • Max. Drop Depth：545mm
  • Max. Lift Height of Ripper：702mm
  • Max. Ripping Depth of Ripper：572mm
  • Max. Tilt：864mm
  • HS Code：8429521200
  • Production Capacity：1000,PCS

Description

ItemUnitZD160-3Blade type-Tilt BladeWorking massKG16500Blade capacitym³4.6Engine model-WD10G178E25Rated power/Slewing speedkW/rpm131Max. torqueN.m/rpm830/1100Min. fuel consumptiong/kW.h215Max. Drawbar pullKn152Ground pressurekPa65Gradeability°°30Traveling speed of forwardkm/h3.8/6.6/10.6Traveling speed of Reversekm/h4.9/8.5/13.6Height of cabmm3095Height of ROPSmm3200Ground contact lengthmm2430Height of blademm1150Track center distancemm1880Height of grousermm65Track shoe widthmm510Max. lift height of dozermm1095Max. drop depthmm545Max. lift height of rippermm702Max. ripping depth of rippermm572Max. tiltmm864
