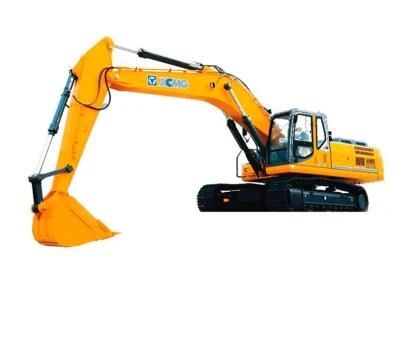

- Model NO.：Xe335c
- Size：Large-Scale
- Certification：ISO9001: 2000
- Condition：New
- Transport Package：Nude Package
| Main performance | Travel speed | km/h | 5.5/3.3 |
| Slewing speed | r/min | 9.7 |
| Gradient capability | ° | ≤35° |
| Ground pressure | kPa | 66 |
| Digging capacity of bcuket | kN | 263 |
| Digging capacity of bcuket rod | kN | 225 |
| Max.traction force | kN | 261 |
| Hydraulic | Main pump | / | Two plunger pumps |
| system | Rated flow of main pump | L/min | 2×280 |
| | Pressure of main safety valve | Mpa | 34.3/37 |
| | Pressure of traveling system | Mpa | 34.3 |
| | Pressure of swing system | Mpa | 26.5 |
| | Pressure of pilot system | Mpa | 3.9 |
| Oil | Fuel tank capacity | L | 630 |
| volume | Hydraulic tank capacity | L | 320 |
| | Engine oil volum | L | 28 |
| Apperance | A Total length | mm | 11388 |
| size | B Total width | mm | 3190 |
| | C Total heigth | mm | 3515 |
| | D Width of rotary table | mm | 2950 |
| | E Length of track | mm | 4725 |
| | F Total width of chassis | mm | 3190 |
| | G Width of track | mm | 600 |
| | H Wheelbase of track | mm | 3813 |
| | I Track gauge | mm | 2590 |
| | J Counterweight ground clearance | mm | 1170 |
| | K Min.ground clearance | mm | 495 |
| | L Min.tail swing radius | mm | 3570 |
| Working | A Max.digging height | mm | 10074 |
| scope | B Max.unloading height | mm | 6898 |
| | C Max.digging depth | mm | 6972 |
| | D 8-feet digging depth under ground | mm | 6728 |
| | E Max.vertical digging depth | mm | 5366 |
| | F Max.digging radius | mm | 10650 |
| | G Max.swing height | mm | 4424 |
| Standard | Boom length | mm | 6400 |
| configuration | Length of bucket rod | mm | 2670 |
| | Bucket capacity | m³ | 1.4 |
| Optional | Length of bucket rod | mm | 2900/3200/4000 |
| counfiguration | Bucket capacity | m³ | 1.6 |
