• Model NO.：ND22
• Engine Power：147~515kw
• Certification：CE, ISO9001: 2000
• Condition：New
• Color：Yellow
• Colour：Yellow
• Brand：Nansome
• Work Effciency：High Work Effciency
• Energy Conservation：Energy Conservation and Environment Protection
• Sell：Factory Outlet
• Transport Package：Bulk Load
• Specification：5390*3735*3350mm
• Trademark：Nansome
• Origin：China
• Production Capacity：5000 Pieces ,Year

Basic Info.

Model NO. ND22 Engine Power 147~515kw Certification CE, ISO9001: 2000 Condition New Color Yellow Colour Yellow Brand Nansome Work Effciency High Work Effciency Energy Conservation Energy Conservation and Environment Protection Sell Factory Outlet Transport Package Bulk Load Specification 5390*3735*3350mm Trademark Nansome Origin China Production Capacity 5000 Pieces /Year

Product Description

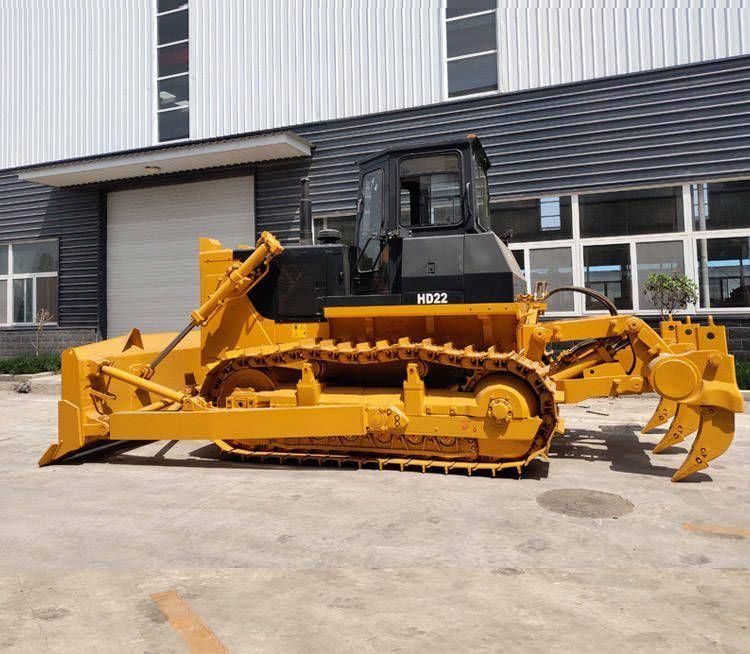

Brand New Nansome ND22 hydraulic crawler Bulldozer for Heavy Duty Type Bulldozer

Brand new Nansome ND22 bulldozer is produced using introduced technology.

Performance parameter
Working mass (kg) 23450 Ground pressure (KPa) 77

Engine
Engine model Cummins NT855-C280S10 Rated power/rated speed (kW/rpm) 175/1800

Dimensions
Overall dimensions (mm) 5390*3735*3350

Walking performance
Forward speed (km/h) F1:0-3.6 F2:0-6.5 F3:0-11.2F
 Backward speed (km/h) R1:0-4.3 R2:0-7.7 R3:0-13.2

Chassis system
Track center distance (mm) 2000
Track shoe width (mm) 560 ground length (mm) 2730

Fuel tank capacity
Fuel tank (L) 450

working equipment
Blade type Straight tilting shovel, angle shovel, U-shaped shovel, semi-U shovel Shovel depth (mm) 540 ripper type Single tooth ripper depth (mm) Single 695

Hexahedron cab, large internal space and wide field of vision, FOPS/ROPS can be configured as required, safe and reliable;
Electric control of hand and foot throttle makes the operation more precise and comfortable;
Equipped with intelligent display and control terminal, heating and cooling air-conditioning, etc., to provide a richer humanized driving experience, allowing you to know the system status at any time, smart and convenient.

The stable and reliable Shantui chassis system is suitable for various harsh working conditions;
The product has a long grounding length, large ground clearance, stable driving, and good passability;
It can be equipped with straight tipping shovel, half U shovel, U shovel, angle shovel, coal shovel, rock shovel, sanitation shovel, ripper, towing frame, etc. according to the specific working conditions, with stronger job adaptability, and LED work lights are optional , Improve the night construction lighting ability, and make it safer and more reliable.

Structural parts inherit the excellent quality of Shantui's mature products;
The electrical wiring harness adopts corrugated pipe protection and line splitter to split the line, with high protection level;
Open-type large-space side shield, more convenient for maintenance;
The lubrication and maintenance points of the whole machine are moved to the outside of the machine body, which is convenient and quick to maintain.
