• Model NO.：BY800
• Weight：650kg
• Dimension：220*96*145(L*W*H Cm)
• Engine：B&S or Honda
• Tranmission：Hydraulic Pump
• Loading Weight：800kg
• Drum Material：Plastic- Spray
• Lifting Height：1.4m
• Transport Package：Steel Frame
• Specification：CE
• Trademark：ANT
• Origin：Jiangsu, China
• Production Capacity：300PCS,Month

Basic Info.

Model NO. BY800 Weight 650kg Dimension 220*96*145(L*W*H Cm) Engine B&S or Honda Tranmission Hydraulic Pump Loading Weight 800kg Drum Material Plastic- Spray Lifting Height 1.4m Transport Package Steel Frame Specification CE Trademark ANT Origin Jiangsu, China Production Capacity 300PCS/Month

Product Description

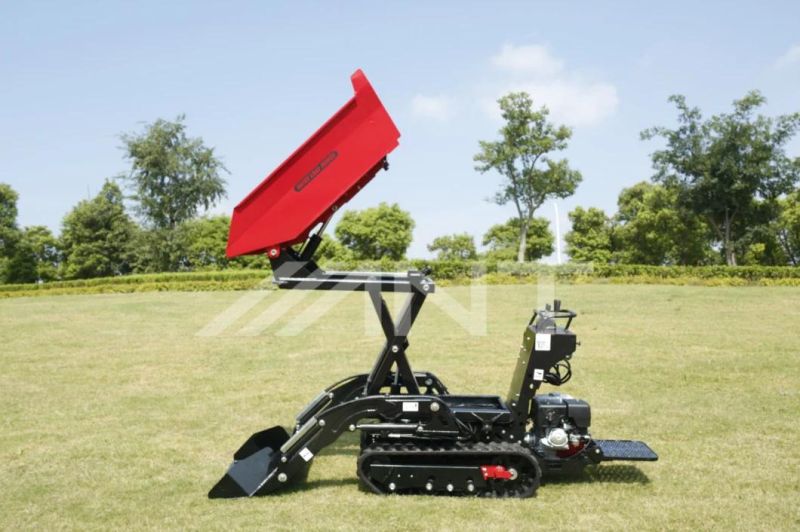

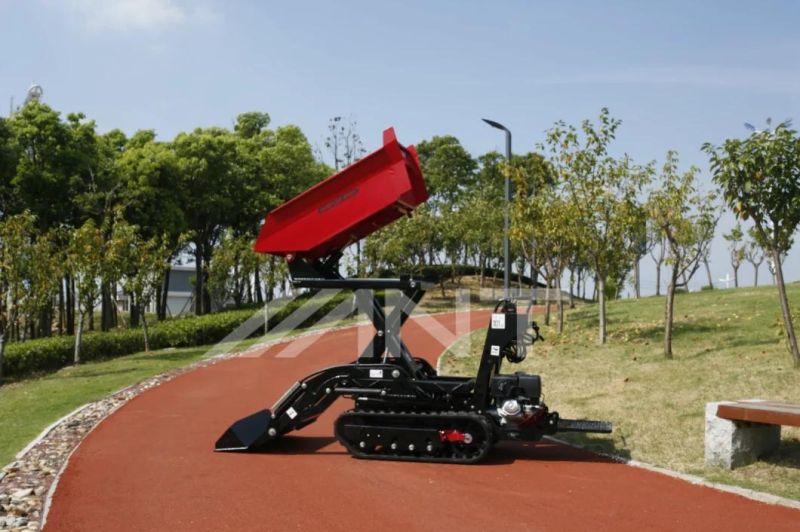

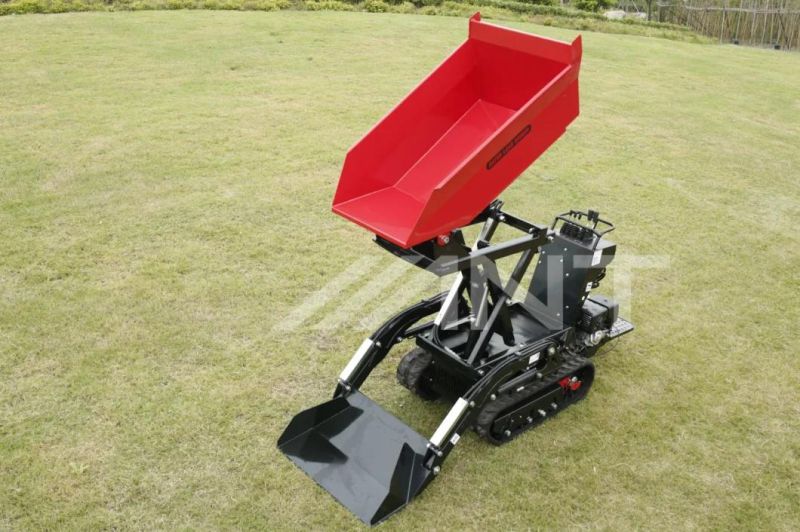

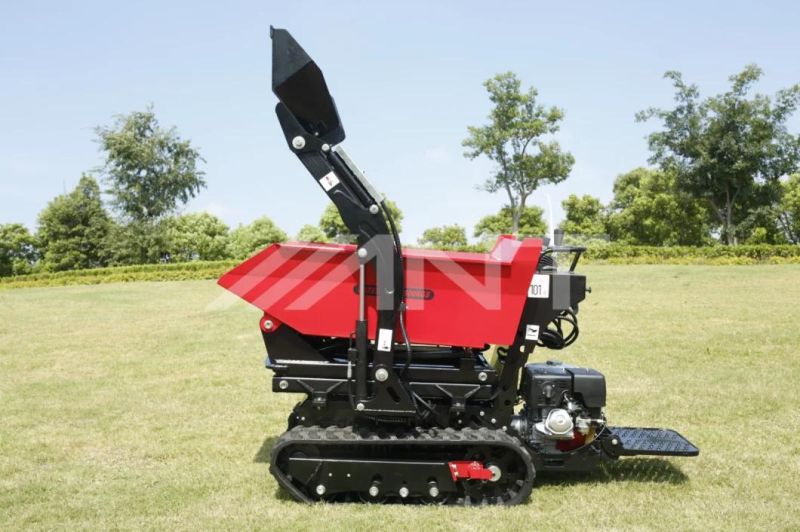

Tracked dumper/crawler dumper/mini loader withCE

Farming tractor is the flagship product of our company, it obtained good appraise and recognized by oversea clients around the world with excellent quality and after-sales service. Also we have confirmed our sales agent of this products in Alstralia, Germany, Malaysia and so on.

Model	BY800
Engine	Honda GX390 13HP gasoline/B&S/Kama Diesel
Type	Hydra-static
Operative weight       kgs(lbs)	800 (1762)
Max travel speed       km/h(mph)	0-4.8(0-3.0)
Transmission
Hydraulic pump	2 x variable displ.
Flow                 Vmin(gpm)	2 x 32.4 (2 x 8.5)
Hydraulic motors	2 x orbital
Brake parking	Mechanical
Hydraulic system
Hydraulic pump	Gear pump
Flow                 Vmin(gpm)	1 x 13.5 (1 x 3.5)
Hi-flow               Vmin(gpm)	1 x 22 (1 x 3.5)
Max pressure           bar(psi)	150 (2180)
Main valve	2-3 way
Cooled system	air-cooled
Skip tipping system	Hydraulic
Tracks
Standard track width     mm(in)	180 (7.1)
Track roller	3
Rocking rollers	Yes
Track tensioning	Yes
