• Model NO.：YX656
• Origin：China
• HS Code：84295100
• Production Capacity：20000 Units,Year

      Bucket capacitym32.4~4.5(standard bucket 3.0)Total cycle time(lift, dump& lower)s<11.3Rated loadkg5000Dump height/Dump anglemm/ °3210/52Overall operating weightkg16700Dump distance/Dump anglemm/ °1120/52Max. traction forcekN>170Min. ground clearancemm457Max. breakout forcekN>198Wheel basemm3200Grade ability°30Wheel treadmm2190Min. turning radius(outer side of the bucket)mm6700Departure angle°30Min. turning radius(outer side of the tire)mm6030Steering angle(left & right)°38

Overall dimension (standard configuration)      mm     7930*3020*3420

Core componentsEngineDrive SystemModelWei chai WD10G220E23Torque converter typedouble turbine,
4 elementsTypevertical, in-line, direct injection, water cooling, four-stroke, turbo chargedTransmission typeplanetary power shiftRated power162KWGears2 forward,1reverse  Main drive typespiral bevel gear, first reduction  Hub reduction typeplanetary  Drive axledry type axleSteering SystemBraking SystemTypeload sensing hydraulicService brakeAir-over-oil caliper discOil pump typegear pumpParking brake
(emergency  brake)flexible shaft caliper discWorking Device Hydraulic SystemTireControl typejoystickSpecification 23.5-25Oil pump typegear pumpTread patterngeneral pattern

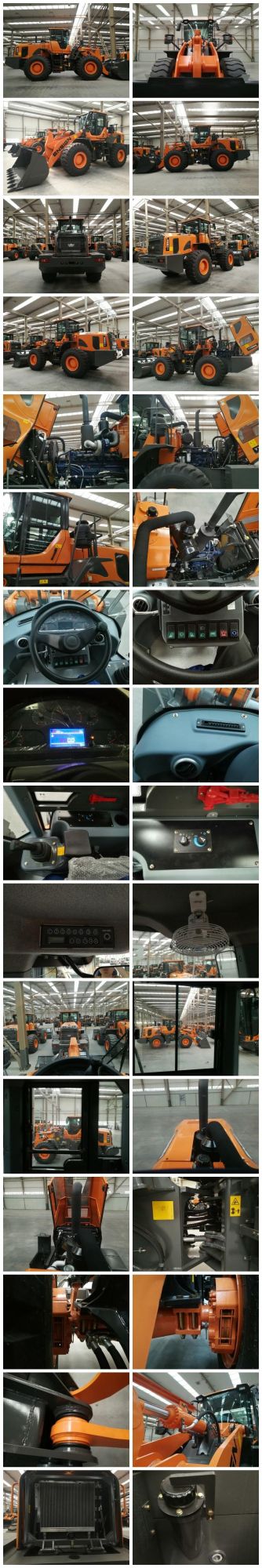

Detailed photos:




Main features:

Strong Power

• Long wheel base design contributes to large traction force
• The bearing capacity of drive axles is increased by 15%
• 18PR tires designed for mining environment
• High load ratio and large breakout force provide high efficiency.

Comfort & Convenience

• Cab space enlarged by 15%
• Low noise, shock-absorbed and dust proof cab
• Back-flipped engine hood, easy for maintenance
• Pilot control and brand new air conditioner design
• The bucket can set level automatically, and the set level angle can reach 3°

Reliability & Durability

• Upgraded hydraulic system
• New design concept of electrical system
• Optimal designed structural components

Safety

• Reliable ROPS & FOPS cab
• Reliable braking system
• Safe and comfortable cab

Energy Saving & Green Initiative

• Remarkable fuel and energy conservation
• Optimum radiation
• Low noise


Optional devices:
 Quick Hitch
 Third function valve
  Longer arm
  Rops/Fops
  Tyre Chain
  Rock Bucket
 Pallet/Grass Fork
 Grapple Forks/Wooden Forks
 Grapple Bucket
 Snow Bucket
 New Wooden Forks
 Hydraulic Snow Blade
 Sweeper
 Snow Blower
 4 In 1 Bucket

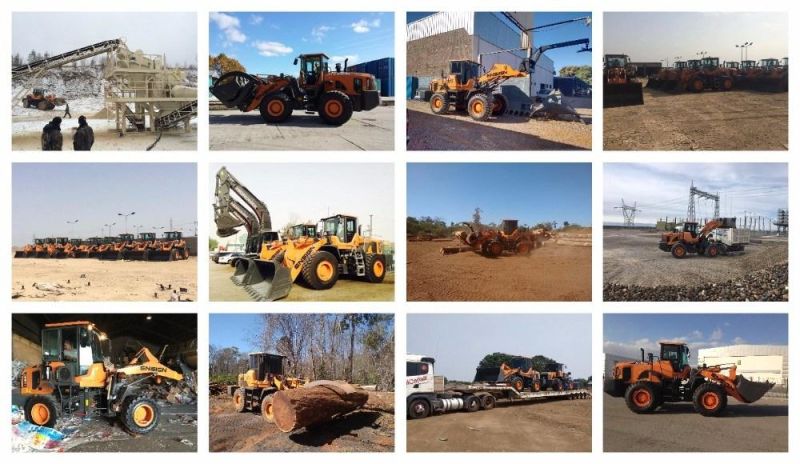

ESNIGN wheel loader in the world:

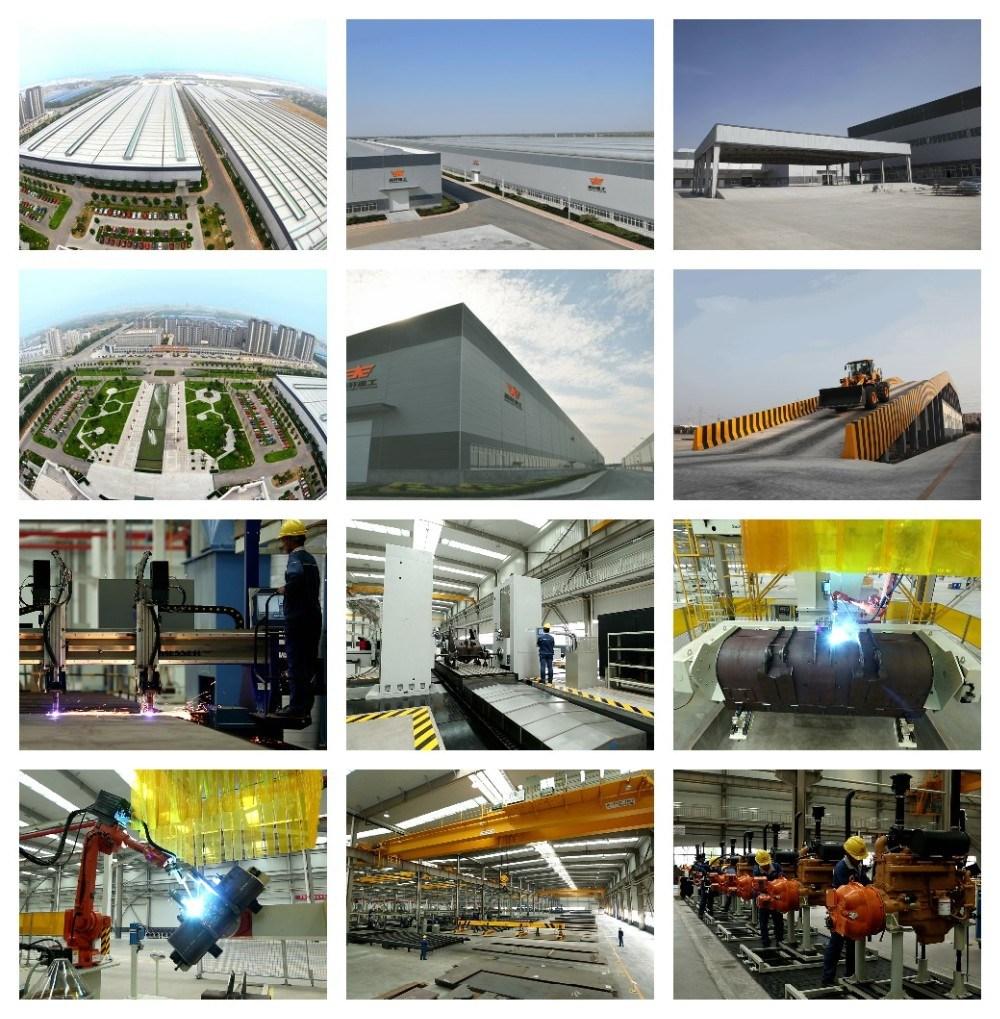

WE ARE THE PROFESSIONAL FACTORY SPECIALIZED IN HIGH LEVEL CHINESE WHEEL LOADER PRODUCTS.





Certificates:





Our Service:
