Articulated Double Steel Wheel Hydraulic Vibratory Road Roller
ZHENGZHOU TOURAN TRAFFIC CO., LTD.- After-sales Service：Lifelong After-Sales Service
- Warranty：One Year
- Type：Road Roller
- Working Method：Steel Wheel
- Axle：Biaxial Dual-Drum
- Grinding Wheel Type：Vibratory Steel Wheel
Base Info
- Model NO.：TR-VCMD800
- Compaction Depth：30cm
- Engine Type：Diesel Engine
- Travel Speed：0-10km,H
- Centrifugal Force：28
- Condition：New
- Power of Engine：9.8kw
- Steel Wheel Width：800mm
- Steel Wheel Diameter：560mm
- Vibration Frequency：65Hz
- Vibration Amplitude：0.5mm
- Fuel Tank：15L
- Hydraulic Oil：18L
- Water Tank：70L
- Transport Package：Plywood Case
- Specification：1990*1460*1130mm
- Trademark：Touran Traffic
- Origin：China
- HS Code：8429401900
- Production Capacity：15,Month
Description
Overview
Product DescriptionProduct Name Articulated double steel wheel hydraulic vibratory roller Model Number TR-VCM-D800/D800C/D800S Operating Weight 1500/1600/1800kgs Static Line Load 68/70/82 N/cm Brief Description of Features ∧ Equiped with high performance power, to ensure superior performance.
∧ Overall plastic spraying coating, beautiful appearance and easy operation.
∧ Small working radius, more suitable for working on the narrow area.
∧ Adopt domestic famous brand hydraulic pump, motor to make sure high quality and high stability
∧ Extended arm, steering convenient, efficient operation.
∧ Transmission system adopts Japan NSK bearing, ensure the working performance of the machine. Technical Data Item Unit Parameters TR-VCM-D800 TR-VCM-D800C TR-VCM-D800S Dimension Overall Length mm 1980 2030 2210 Overall Width mm 930 920 1050 Width of steel wheel mm 800 800 900 Diamenter of steel wheel mm 560 560 560 Drive System Engine / CHANGCHAI 192F KUBOTA Z482 YAMAHA 3TNM68 Engine type / Diesel four-stroke Diesel Four-stroke Diesel, water cool Number of cylinder pcs 1 2 1 Output power kw 8.1 9.8 14.7 Rotating speed rpm 3600 3600 3600 Moving Performance Moving speed km/h 0-6 0-10 0-8 Theoretical climbing ability % 30 35 35 Steering way / Hydraulic Steering, articulated Hydraulic Steering, articulated Hydraulic Steering, articulated Vibration System Parameters Vibration frequency hz 65 65 65 Vibration amplitude mm 0.5 0.5 0.5 Exciting force kn 25 28 30 Tank Capacity Fuel L 5.5 15 36 Hydraulic oil L 22 18 45 Water L 70 70 140

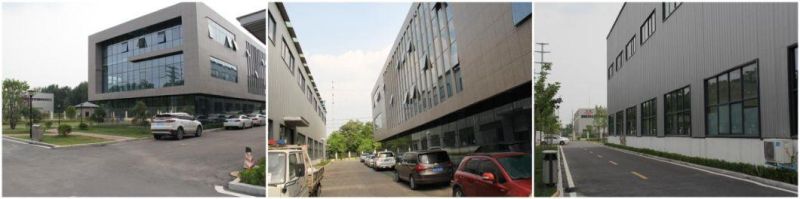

Up to now, the company has established three machinery factories respectively in Zhengzhou, Nantong and Jining. The total construction area reach 100,000 square meters, mainly engaged in the R&D and production of road marking machine, road clearing machine, road crack sealing machine, small roller, sweeper, industrial lighting vehicles and other small pavement machine.
FAQ
The price is negotiable. It can be changed according to your quantity or package. When you are making an inquiry, please let us know the quantity you want.
2.About Sample
Samples of traffic safety products are provided and is Free, but the air freight is collect or you pay us the cost in advance.
3.About MOQ
The MOQ for small size machines is more than 2 sets; for Big size is 1 set. The MOQ for other products, We require a total value of over $5,000.
4.About OEM
Welcome, you can send your own design and LOGO, we can use your Trademark or Brand instead of the original one.
5.About warranty
We are very confident in our products, and we pack them very well, so usually you will receive your order in good condition. But due to long time shipment there may be some damage to the appearance. But not enough to affect the performance of machine. Any quality issue, we will deal with it immediately.
6.About Payment or other question
Pls email us or chat with us online directly.
∧ Overall plastic spraying coating, beautiful appearance and easy operation.
∧ Small working radius, more suitable for working on the narrow area.
∧ Adopt domestic famous brand hydraulic pump, motor to make sure high quality and high stability
∧ Extended arm, steering convenient, efficient operation.
∧ Transmission system adopts Japan NSK bearing, ensure the working performance of the machine.
1. Enterpise Scale
Up to now, the company has established three machinery factories respectively in Zhengzhou, Nantong and Jining. The total construction area reach 100,000 square meters, mainly engaged in the R&D and production of road marking machine, road clearing machine, road crack sealing machine, small roller, sweeper, industrial lighting vehicles and other small pavement machine.
