• Model NO.：HZS25,HZS35,HZS50,HZS60,HZS75,HZS90,HZS120,HZS180
• Productivity：25m²,h
• Feeding Height：3800mm
• Certification：ISO9001: 2000, CE
• Condition：New
• Color：on Request

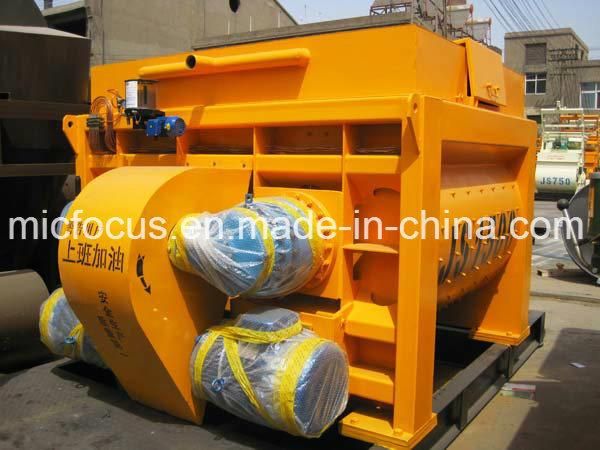

• Matched Concrete Mixer：Js1000
• Aggregate Batcher：PLD1600-4
• Cement Silo：50t or 100t
• Concrete Batching Plant Control：Full Automatic Computer Control
• Water&Cement Weighing：Separate Accurate Scale
• Aggregate Weighing：by Weight
• Scale Accuracy：2% Concete Batcher
• Power Source：380V, 50Hz, 3 Phase
• Screw Conveyor：219mm
• Name：25-240cbm,H Premix Rmc Concrete Batching,Mixing Pl
• Transport Package：2-10 Sets of 40hq Container
• Specification：ISO9001: 2008, CE
• Trademark：FOCUS
• Origin：Zhengzhou, China
• HS Code：847431000
• Production Capacity：60sets Per Month

ModelHZS25HZS35HZS50HZS75Theoretical output(m³/h)25355075Mixer modelJS500JS750JS1000JS1500Output per batch(m³)0.50.7511.5Aggregate batcherPLD800PLD1200PLD1600PLD2400Total power(KW)273580110Aggregate weighing accuracy(%)(0-1500)kg±2%(0-2250)
kg±2%(0-2500)kg±2%(0-4000) kg±2%cement weighing accuracy(%)(0-300)kg±1%(0-400)kg±1%(0-500)
kg±1%(0-800)
kg±1%water weighing accuracy(%)(0-200)kg±1%(0-300)kg±1%(0-300)kg±1%(0-500)kg±1%fly ash weighing accuracy(%)(0-300)kg±1%(0-300)kg±1%(0-300)kg±1%(0-500)kg±1%additive weighing accuracy(%)(0-40)kg±1%(0-40)kg±1%(0-40)kg±1%(0-50)kg±1%Discharge height(m)3.8-4.1Max. aggregate dia.(mm)60608080Cement silo and screw conveyorOn requestTotal weight (ton)20253545Overall dimension(LxWxH)(m)11.5x5.8x19.412x6x19.420.5x7.5x19.425.9x9.2x19.4


Belt Conveyor type(High production capacity, high cost):
HZS60 60cbm/h, HZS90 90cbm/h, HZS120 120cbm/h, HZS180 180cbm/h

Parameters of Belt conveyor type RMC Concrete Batching Plant/Concrete Mixing Plant:ModelHZS60HZS90HZS120HZS180HZS240Theoretical output(m³/h)6090120180240Mixer modelJS1000JS1500JS2000JS3000JS4000Output per batch(m³)11.5234Aggregate batcherPLD2400PLD2400PLD3200PLD4800PLD6400Total power(KW)110145160205340Aggregate weighing accuracy(%)(0-3000)kg±2%(0-4000)kg±2%(0-4500)kg±2%(0-4500)kg±2%(0-6000)kg±2%cement weighing accuracy(%)(0-600)kg±1%(0-1000)kg±1%(0-1200)kg±1%(0-1800)kg±1%(0-2400)kg±1%water weighing accuracy(%)(0-400)kg±1%(0-400)kg±1%(0-600)kg±1%(0-800)kg±1%(0-1000)kg±1%fly ash weighing accuracy(%)(0-400)kg±1%(0-400)kg±1%(0-600)kg±1%(0-800)kg±1%(0-700)kg±1%additive weighing accuracy(%)(0-40)kg±1%(0-40)kg±1%(0-50)kg±1%(0-50)kg±1%(0-120)kg±1%Discharge height(m)3.8-4.2Max. aggregate dia.(mm)80-100Cement silo and screw conveyorOn requestTotal weight (ton)46607187112Overall dimension(LxWxH)(m)33.8x14.8x19.438x16x19.444x18x19.458.5x23.5x2260x25x22


 CE Certificate of FOCUS Stationary RMC Concrete Batching Plant/Concrete Mixing Plant:
